Web Guiding System

Technical Specification

Type KEW-17 KEW-30
Motor rating (3 phase, 50 Hz) 0.5 HP 1HP
Pump flow rate 3.4 l/min 5.8 l/min
Tank capacity 17 liters 30 liters
Oil type Servo 32, Enklo 44, Hydro 37 -
Line pressure 14 bar 21 bar
Max. Operation force (50.8 mm dia. Cylinder) 260 kg 389.5 kg
Follow-up speed - -
Max. At 3.4 l/min 30mm/sec -
At 5.8 l/min - 40mm/sec
Air sensor air pressure 5 to 28 mbar, infinitely adj. -
Weight including oil 40kg 60kg

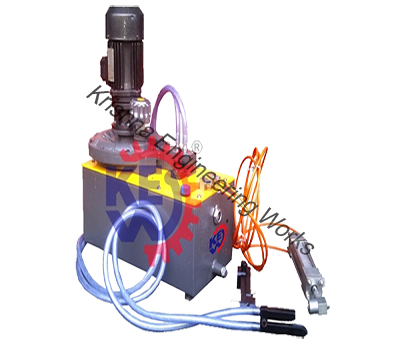

VARIOUS TYPES 1) ELECTRO-HYDRO Web Aligner (Power Pack) Unit:
  • Electronic of the film Photocell sensor for edge.
  • Electronic 0 – 5 HP AC Motor.
  • Electrical Panel Board for Operate the complete Unit.
  • Hydraulic Cylinder – Adjuster – Oil Pipe.
  • Speed of Unit 250/min
  • Variation of the film Winding is 0.5


2) HYDRO -PNEUMATIC Web Aligner Unit.
  • 0.5 H.P. Motor
  • Air Pipe – 5 Mtr.
  • Oil Pipe – 5 Mtr.
  • Sensor – 1 pcs
  • Adjuster – 1 pcs.
  • Air Filter – 1 pcs.
  • Oil Filter – 1 pcs.
  • Hydraulic Cylinder size 6" strock – 1 pcs

Web Guiding System

Line Guiding System

Centre Guiding System

Web Guiding System with high quality and accurate performance based air pressure power units. Various types of web guiding system, Pneumo Web Aligner, Edge Guiding System, Hydraulic Power Pack Unit, line of Edge, Center, and Line Guiding from India. All types of Web Guiding System, available in models from 1/4 H.P. to 3 H.P. to meet any guiding application you may have. Web Guiding System is used for any winding & unwinding application for guiding the web to reduce the wastages of the material & to get high production output with minimum man power. We are Web Guiding System Manufacturer with heavy duty parts for different machines like Slitter Rewinder Machine , Winding Rewinding and many more.

Web Guiding System Manufacturer
  • Rotogravure Printing Machine
  • Lamination Machine / Coating Machine
  • Slitter Rewinder Machine
  • Doctoring Rewinding Machine
  • Paper Machinery
  • Textile Machine like Batching Machine, Inspection Rewinding Machine , etc
  • Tyre-Cord Machinery
