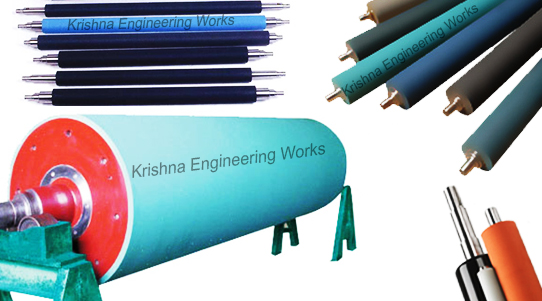

Rubber Roller

Rubber Rollers / Ebonite Rolls
  • Remove wrinkles
  • Achieve full width of the web Eliminate baggy center
  • Control slack edges
  • Separate slitted webs on winder
  • Try to even out lateral tension across the web width



Rubber Roller Manufacturer

Bow Roll

The performance of rubber expander (Bow Rollers) depends upon Lead in – lead out distance, Wrap angle, Position of bow (adjustable). 3: 1 lead in – lead out ratio is considered to be best. However, lead out distance preferably should not to be more than 3 times of expander roller diameter. The best results are achieved when bow roll is perpendicular to the web direction.


Sizes:Diameter up to 300 mm
Length: up to 500 mm
Grooved Rollers

Rubber Grooved Separator Rollers


Brush Roller
Web Carrying Roller
Analox Roller For Flexo Printing
Wrinkle Removing Rollers

Slat Expander Rollers are available in wooden slat with felt covering and with aluminum slats. Also, available in 6" diameter 8"diameter & 12" diameter in any working width. Particularly suitable for slow speed machines like coating cloth coating machines. Flat Bed Printing machine, artificial leather cloth before Batching machine etc. The Rubber Rolls is fitted with cam mechanism fitted with on bearings with left & Right slats from center. For longer width three slats are fitted and middle slats are fixed to avoid V shaped wrinkle-removing action. Available with foot mounting pedestals.


Rubber Roller Manufacturer, Exporter and Supplier, we have been successfully manufacturing all types of Rubber Rollers from India. Rubber Roller with different types for various Industries. Brush Rollers, Super Hard Rubber Rollers, Inflatable Rubber Tube, Nip Roll, Pinch Rollers, Printing Rollers, Impression Rollers, Silicon Rollers, EPDM Rubber Roller.
Krishna Engineering Works, Rubber Roller India. International standards of Rubber Rollers, also awarded for best quality products. We are specialized and manufacturer, exporter of all types of high quality Rubber Rollers. Rubber Roller available for all kind of applications and various types of rubber coated rollers. Also, dealing on high quality fabrication, re-covering rubber roller, rubber roller, precision rollers, textile rubber roller, printing rubber rollers and industrial rubber rollers from last 25 years. We have been lively manufacturing and engaged in serving various industries from last 25 years for supplying Rubber Roller like, Packaging, Converting, Plastic, Textile, Foil, Paper, Lamination, Metal, Leather and many more.


  • Heavy duty side M.S. steel walls to ensure vibration free running at high speed.
  • Foundation free base frame.
  • High velocity air blower for fast dying.
  • Good quality electronic input drives, motors, Tension Control System etc.
  • All free rollers are dynamically balanced.
  • Pneumatic functions for impression rolls.
  • Auto tension control.
  • Auto web aligner.
  • Careful quality control in manufacturing process to ensure years of maintenance free running.
