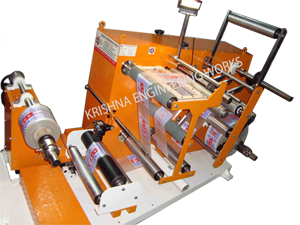

Slitting Rewinding Machine for Batch Printing Coding

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
  (Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Speed

 100 to 150 Mtrs / Min


Slitting Rewinding Machine for Batch Printing Coding


  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive
